Contactless Smart Card Reader/Writer

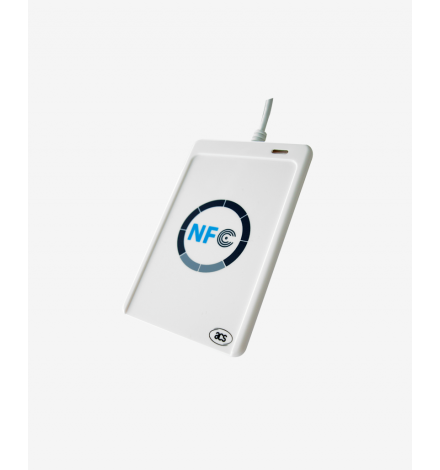

The ACR125U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE^® and ISO 14443 A and B cards, but also all four types of NFC tags.

ACR125U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, aCR125U can also read and write more quickly and efficiently. The proximity operating distance of ACR125U is up to 5 cm, depending on the type of contactless tag in use.

In order to increase the security level, ACR125U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR125U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The ACR125U NFC Reader is ideal for both secure personal identity verication and online micro-payment transactions. Other applications of the ACR125U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

The ACR125U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR125U with ease.

Standard Features:

• USB Full Speed Interface
• CCID-compliant
• Smart Card Reader:
  • Read/Write speed of up to 424 Kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic^®, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
  • Built-in anti-collision feature (only one tag is accessed at any time)
• Built-in Peripherals:
  • User-controllable bi-color LED
  • User-controllable buzzer
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
• Supports Androidâ„¢ 3.1 and above
• Compliant with the following standards:
  • EN 60950/IEC 60950
  • ISO 14443
  • ISO 18092
  • PC/SC
  • CCID
  • CE
  • FCC
  • RoHS 2
  • REACH
  • VCCI (Japan)
  • KC (Korea)
  • Microsoft^® WHQL
