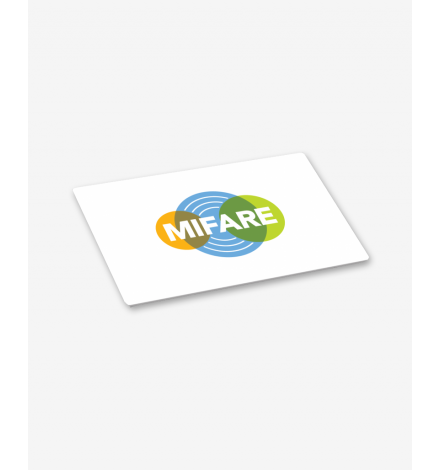

13.56 MHZ Mifare Desfire 2K EV2 RFID Cards

RFID 13.56 MHZ Mifare Desfire 2K EV2 cards

Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)

Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)

Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

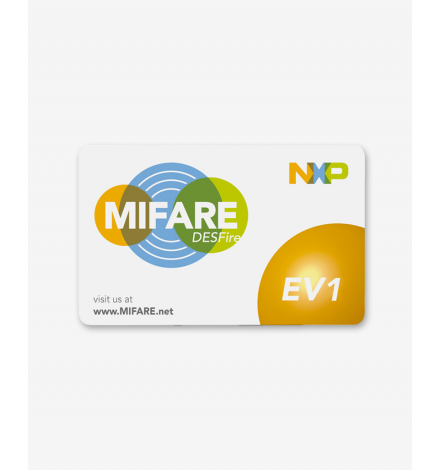

MIFARE DESFIRE EV1 2K SMART CARD

MIFARE desfire EV1 chips offer 3DES, DES and AES encryption - for maximum data security against data manipulation and theft. Chip cards allow up to 28 different applications stored with 32 files per application. With the MIFARE desfire EV1 chip you can achieve data transfer speeds of 848 kbit/s.

An automatic tear-resistant mechanism also guarantees the highest possible data integrity of the transactions carried out. EV1 chips have a unique 7-digit serial number and are available with 2K, 4K and 8K EEPROM memory and accelerated programming. The EV1 2K MIFARE desfire board complies with ISO 14443 A 1-4.

NXP Logo

MIFARE DESFire EV1 chips offer 3DES, DES and AES encryption - for maximum data security against data manipulation and theft. Chip cards allow up to 28 different applications stored with 32 files per application. With the MIFARE desfire EV1 chip you can achieve data transfer speeds of 848 kbit/s. An automatic tear-resistant mechanism also guarantees the highest possible data integrity of the transactions carried out. EV1 chips have a unique 7-digit serial number and are available with 2K, 4K and 8K EEPROM memory and accelerated programming. The EV1 2K MIFARE desfire board complies with ISO 14443 A 1-4.

Main features of MIFARE DESFire chip:

Type: RFID chip per smart card

Chip Type: MIFARE DESFire Chip EV1

Memory Size: 2048 bytes

Frequency: 13,56 MHz (encrypted)

ISO/IEC support: ISO 14443; ISO 7816

Format: standard plastic cards (ISO compliant about 8.56 x 5.398 cm)

UID: 7 bytes

Segment management: up to 28 applications with up to 32 files per application, individual data storage management

Encryption: 16- or 32-bit CRC, EAL4+ Common Criteria certificate (hardware and software), random key generation, DES up to 168-bit and AES with 128-bit encryption

Data transmission: 106 kbps, 212 kbps, 424 kbps, 848 kbps

Duration: 500,000 writing cycles or 10 years

Range: up to 10 cm (maximum range depends on national laws, antenna, working environment and data structure required)

Application fields of EV1 2K desfire MIFARE chip card:

Transport
Subscription/annual subscriptions/ticket office
ID cards
Toll ticket office
Airline ticketing
Access control

Reference PLCR13.56MD2K

Data sheet

Read & Write: YES
Technology: RFID
Frequency: 13.56 MHz
CHIP: Mifare DesFire EV1
Memory: 2048 bytes

Download

Brochure Card RFID Desfire

Highspeed, contactless, multiapplication solution for smart cards: NXP Mifare DESfire EV1

Download (111.82k)
