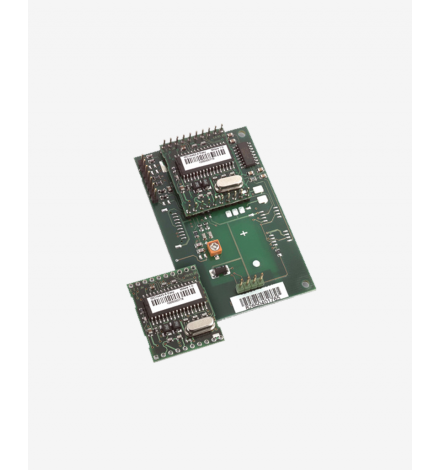

HIDÂ MULTI-ISO -Â Embedded Reader Platform
Flexible and interoperable - single integration enables PC connected, embedded and mobile solutions; supports broad portfoglio of contactless card technologies
Fast, efficient, secure - up to 848 kBits data transfer speed, optimized data through put between card and host. Integrated SAM support maximizes security between card, reader and host
Integration-friendly - supports major tag IC features allwing for easy system integration; employs OS-independent interfacing concept
13.56 MHz HF contactless reader modules
The famili of 13.56 MHz Multi-ISO Reader Boards supports one of the broadest ranges of transmission protocols and transponder ICs available on the market.
Designed to meet the requirements of both secure personal identity verification and supply chain management applications, the Multi-ISO Embedded Reader Platform is ideal for access control, as well as Automatic Fare Collection (AFC), ticketing, vending and mobile solutions.
Featuring integrated SAM support that enables state-of-the-art security, the interoperable reader platform supports a wide range of industry standards, including ISO 14443 A/B, ISO 15693, ISO 18000-3.
Multi-ISO reader boards are also optimized for maximum data throughput times on both the air and serial interface, and are available with a variety of antenna size options for easy integration in virtually any mobile or compact application.
Key Features:
- Easy to integrate with full feature support of most transponder ICs
- Full access to data of contactless memory, high security and microcontroller-based cards
- Compact reader board and antenna design is ideal for virtually any size-constrained application
- Fast reading with up to 848 kBit/s data rate on air interface
- Future-proof through field upgradeable firmware
- Key management
- Enhanced anti-collision algorithm for multi-card handling
- Connectivity with the support of TTL RS232
Data sheet
- ISO standard
- ISO 14443 A/B
ISO 15693
ISO 18000-3 - Reading type
- Contactless
- Keyboard emulation
- NO
- Utilization
- OEM
- Reading options
- Automatic
- Encoder
- NO
- Interface
- Reader Board RS232: RS232
Reader Core: CMOS-TTL - Driver
- Virtual COM port
- Supported API
- DLL (MSVC++)
- Supported cards
- ISO 14443 A/B Tag, ISO 15693 Tag, ISO 18000-3 Tag
MIFARE®, MIFARE DESFire®, MIFARE SmartMX, NTAG 2xx, I-CODE, SLE, NFC TAG - Dimensions
- Reader Board RS232: L70 x W45 x H12,1 mm
Reader Core: L25,5 x W30 x H4,8 mm - Weight
- Reader Board RS232: 17 g
Reader Core: 5 g - Communication protocol
- Specific ASCII and binary
- Antenna
- Reader Board RS232: Integrated
Reader Core: External
