Omnikey 5127CK
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
Politiche per le spedizioni (modificale con il Modulo rassicurazioni cliente)
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

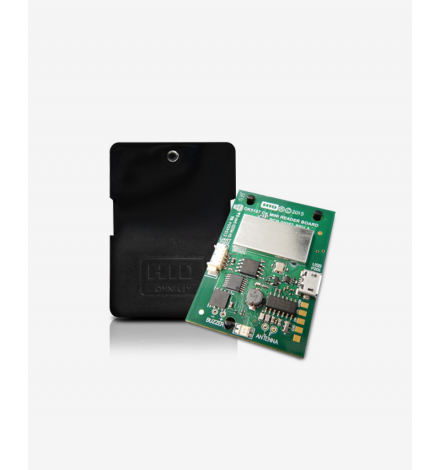

HID OMNIKEY® 5127CK - Mini Reader Board
Multi-interface support -Â CCID, Keyboard Wedge and UART interfaces offer flexible integration options for a wide range of applications
Dual frequency and mobile access - simultanously supports low and high frequency credentials, including iCLASS Seos®, HID Prox®, iCLASS SE®, MIFARE Classic® and MIFARE® DESFire® EV1 and EV2; as well as NFC and Bluetooth for mobile devices
Compact design - very small footprint provides capability for installation in space-constrained designs
Industrial housed options - rugged case providing protection in the embedded environment
Embedded CCID and keyboard wedge RFID reader board
HID Global's OMNIKEY® 5127CK Mini reader board opens market opportunities for system integrators seeking simple integration and development of readers using standard interfaces such as CCID, UART or Keyboard Wedge.
The new 5127CK Mini reader board complements the existing 5127CK reader board and 5427CK reader by providing a very compact design for installation in space-constrained solutions.
The CCID interface enables integrators to design finished readers without the need to install or maintain drivers, eliminating complex software lifecycle management issues in the field and accelerating introduction of finished devices in the market.
With the Keyboard Wedge functionality, the reader can retrieve data from a card that is presented to the reader and directly input the card data into an application using keystroke emulation. This eliminates the need for customers to manually enter the card data into an application.
Key features of the OMNIKEY 5127CK Mini reader board include support for the most common low and high frequency card technologies, including Seos®, iCLASS, MIFARE Classic, MIFARE DESFire EV1 / EV2 and HID Prox. It also includes an integrated management tool that enables field updates to readers for new firmware or changing configuration settings.
Data sheet
- ISO standard
- ISO 14443 A/B
ISO 15693 - Operating system
- Linux
Windows
macOS - Reading type
- Contactless
- Keyboard emulation
- YES
- Utilization
- OEM
- Reading options
- Automatic
- Encoder
- NO
- Interface
- USB 2.0 full speed (also compatible with USB 1.1)
- Driver
- CCID: PC / SC compliant with OS native CCID drivers
Keyboard Wedge: compliant with native UI drivers - Supported API
- CCID: PC / SC
Keyboard Wedge: dispositivo di interfaccia utente - Supported cards
- HID Prox®, Indala® & EM Prox, MIFARE Classic®, MIFARE® DESFire® EV1 / EV2, iCLASS®, iCLASS SE, iCLASS Seos®, HID Elite® and other SIO enabled credentials
- Dimensions
- Housing: L55 x W40 x H16 mm
Reading board: L50 x W35 x H8,94 mm - Weight
- Housing: 24,4 g
Reading board: 10,5 g - Warranty
- 2 years of the manufacturer
HID OMNIKEY® 5127CK - Mini Reader Board
Multi-interface support -Â CCID, Keyboard Wedge and UART interfaces offer flexible integration options for a wide range of applications
Dual frequency and mobile access - simultanously supports low and high frequency credentials, including iCLASS Seos®, HID Prox®, iCLASS SE®, MIFARE Classic® and MIFARE® DESFire® EV1 and EV2; as well as NFC and Bluetooth for mobile devices
Compact design - very small footprint provides capability for installation in space-constrained designs
Industrial housed options - rugged case providing protection in the embedded environment
