HID OMNIKEY® 5122 - Reader Board USB
Quick & Easy Integration - unparalleled support and compatibility to ISO 14443 A/B and ISO 7816 standards
Versatile Applications - ideal device for both contactless and contact smart card technology environments
Fast and Secure Data Transmission - advanced design and features enable shorter card read time
Suits Any Application - compatible with virtually any smart card and major PC operating systems

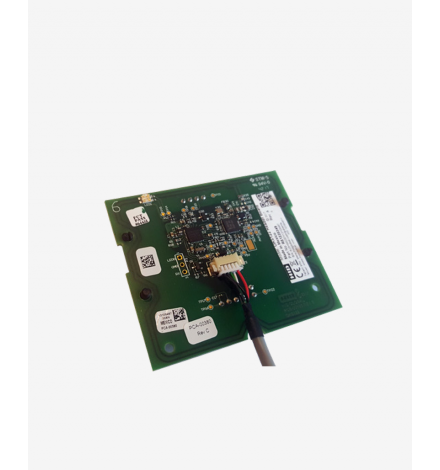

A dual interface smart card reader board for OEMS
The OMNIKEY® 5122 Reader Board is a dual interface PC-linked reader that reads / writes to both a 13.56 MHz contactless smart card and virtually any contact smart card.
The dual interface feature, implemented on a small PCB, economically supports end-user environments where both contactless and contact smart card technology may be in use. The reader supports contactless smart cards with up to 424 kbps in ISO 14443 transmission mode.
Product features:
- Supported cards include MIFARE®, MIFARE DESFire® iCLASS®
- Suports ISO 14443 A&B, iCLASS 15693 and ISO 7816
- Contact unit based on OMNIKEY® 3121
- Up to 424 Kbps transmission rate
- Mounting bracket available
- Small PCB
Data sheet
- ISO standard
- ISO 7816
ISO 15693 - Card size
- ID-1
- Operating system
- Android
Linux
Windows
macOS - Reading type
- Contact
- Keyboard emulation
- NO
- Utilization
- OEM
- Reading options
- Manual
- Encoder
- NO
- Interface
- USB 2.0 full speed (12 MBps), USB 3.0 extended operation
- Driver
- Native CCID
- Supported API
- PC / SC
- Supported cards
- Smart card 5V, 3V and 1,8V, ISO 7816 Class A, B and C
- Dimensions
- L66 x W55 x H11 mm
- Weight
- About 75 g
- Warranty
- 2 years of the manufacturer
