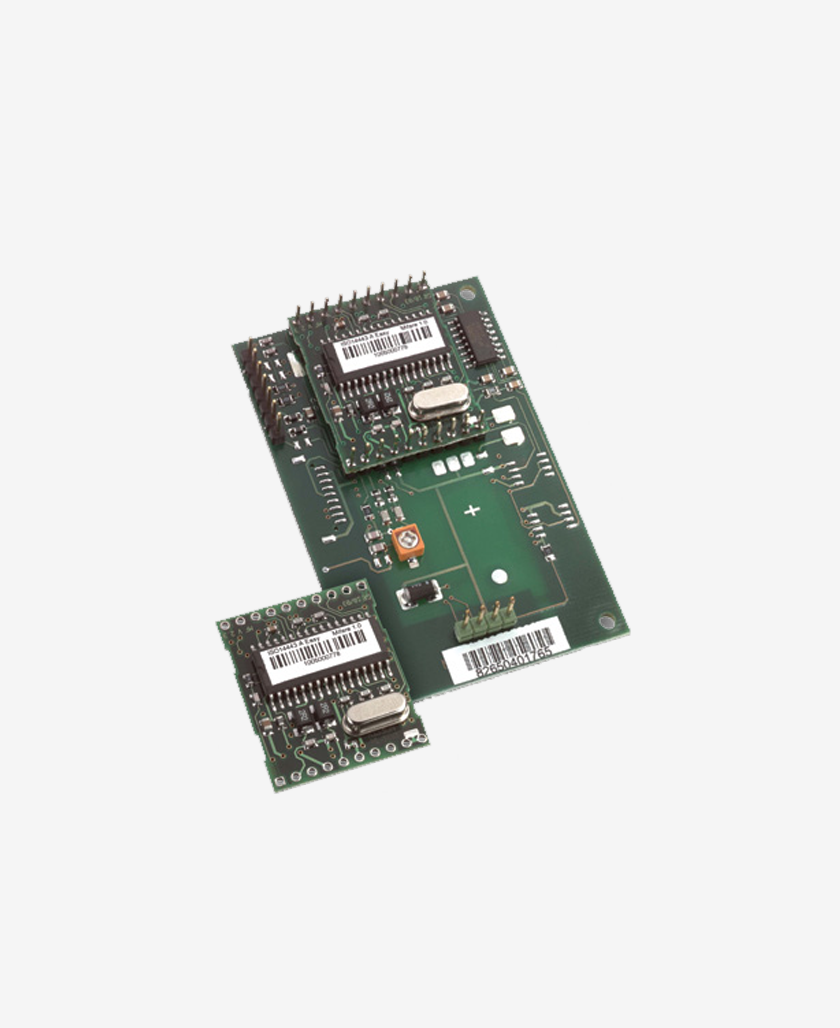

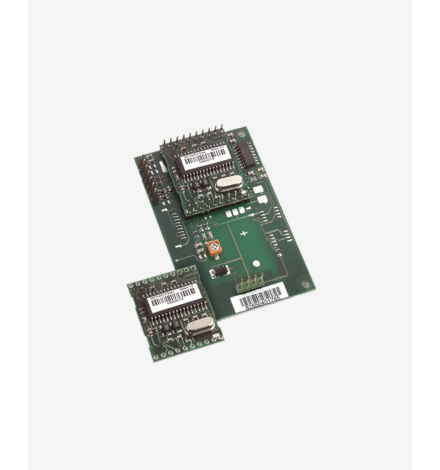

HID MIFARE™ EASY - Reader Board Family
Fast Contactless Transmission - optimized data throughput time between data carrier and host
Flexibility - integrated and optimized antenna for a quick and easy integration into applications
Cost-effective - minimized integration and engineering costs save time and money
Simplicity - major tag IC features already implemented for easiest system integration
Connectivity - integration with OS independent interfacing concept
Platform offering integrated contactless read / write solutions
The MIFAREâ„¢ Easy Embedded Reader platform offers system integrators and terminal manufacturers a cost-efficient design-in solution for contactless applications utilizing MIFARE technology. Secure, scalable MIFARE Easy reader modules with read / write capability are designed to be easily integrated into compact terminals or handheld devices.
The module and platform are ideal for automatic fare collection (AFC), ticket vending machines, validators, card printers, mobile devices and various other payment applications.
Key Features:
- Easy to integrate with full feature support of most transponder ICs
- Optimized to read / write to MIFARE and ISO 14443A standard cards
- Supports the complete portfolio of ISO 14443A tag ICs
- Minimized integration costs
- Future proof due to firmware upgrade capability
- Device can be easily connected to a controller or any host system via serial interface
- Two alternative protocols for all components
- Full access to data of contactless memory cards
Data sheet
- ISO standard
- ISO 14443 A
- Reading type
- Contactless
- Keyboard emulation
- NO
- Utilization
- OEM
- Reading options
- Automatic
- Encoder
- YES
- Types of encoded cards
- Smart Card
- Interface
- Reader Board RS232 Compact: RS232
Reader Core: C-MOS TTL - Driver
- Virtual COM port
- Supported API
- DLL
- Supported cards
- MIFARE â„¢ DESFire â„¢ (serial number only), SLE66R35, SLE44R35, ISO 14443A Tag
MIFARE â„¢ Standard, MIFARE â„¢ 4k, MIFARE â„¢ Pro X, MIFARE â„¢ Ultralight - Dimensions
- Reader Board RS232 Compact: L70 x W45 x H12.1 mm
Reader Core: L25.5 x W30 x H4.8 mm - Weight
- Reader Board RS232 Compact: 16 g
Reader Core: 5 g - Communication protocol
- Specific ASCII and binary
- Antenna
- Reader Board RS232 Compact: Integrated
Reader Core: External
