Desktop card counter with horizontal loading

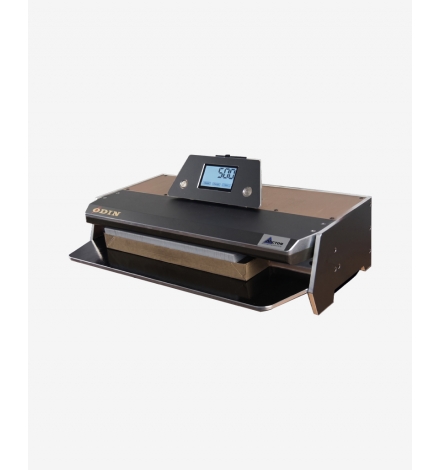

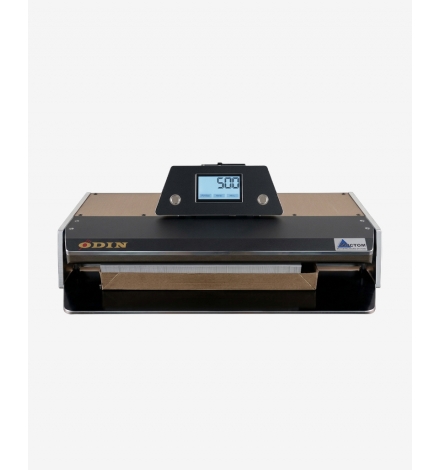

Mictom ODIN is the advanced desktop card counter designed for processing ID1 cards in a horizontal position. Featuring a robust 33 kg industrial chassis and a Plug & Play auto-calibration system, it delivers absolute precision on standard and critical materials, including "split core" cards, SIM bodies and metal-edged cards.
Key Strengths:
- Horizontal loading: Optimized and secure system for handling ID1 cards
- Flexible thickness: Safely manages cards from 0.3 to 1.5 mm
- Auto-calibration: Automatically sets up programs for complex materials
- Outstanding speed: Dual scanning counts 500 cards in just 2.6 seconds
Counting tools for professionals: the power of ODIN
The Mictom ODIN counter expands the range of professional counting device by introducing a specialized loading mode for cards in a horizontal position. its industrial nature is immediately apparent from its solidity: weighing 33 kg, the aluminum housing is built to eliminate vibrations and guarantee long-term, intensive work cycles in the most structured production centers.
At the core of the device operates an exclusive dual scanning process via high-precision optical sensors. Combined with the automatic calibration tool, ODIN seamlessly reads difficult materials, from embossed cards to solid black core cards, right through to transparent plastics, SIM bodies and cards with metal edges.
Features and Benefits
- Plug & Play Operability: The device is immediately ready for use, eliminating the need for any specifica operator training. Multilingual interface included (English, French, Spanish, German, Italian)
- Special materials management: The auto-calibration learns and creates the necessari programs as soon as new types of complex cards are inserted
- Accumulation function: Ability to store and add individual partial counts up to a maximum total of 9,999,999 cards
- Extended flexibility: Perfect for almost any type of ID1 format card (ABS, PVC, PC, PET) with thickness tolerances from 0.3 mm up to 1.5 mm
Data sheet
- Dimensions
- 685 x 330 x 185 mm (L x D x H)
- Weight
- 33 Kg
- Applications
- Horizontal orientation
ID1 Plastic cards - Card materials
- ABS
PC
PET
PVC - Card thickness
- ~ 0.30 mm – 1.5 mm / 12 mil. - 60 mil.
- Card type
- Black plastic
Colored plastic
Embossed plastic
Molded plastic
Paper with "split core" metallic edges
SIM card bodies
Smooth plastic
Translucent plastic - Counting speed
- About 2.6 seconds for 500 cards
- Counting process
- Dual-scan process using high-precision optical sensors
- Operating voltage
- AC 100V - 240V; 50Hz - 60Hz
