Ultra-high speed universal desktop card counter

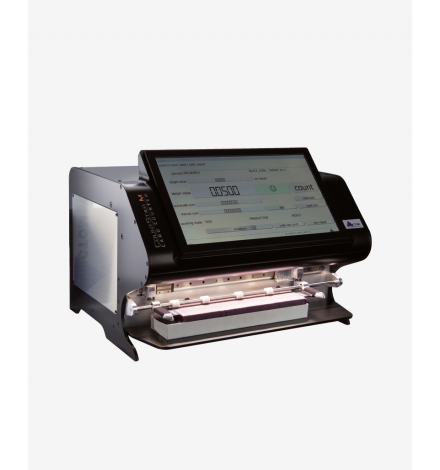

Mictom CountStar M is the world's fastest universal card counting machine, fully Industry 4.0 compliant. Using innovative contactless optical technology, it counts 500 cards in just 1 second directly inside their box, even through shrink wrap. It easily handles horizontal ID1 cards made of plastic or cardboard, from 0.4 to 5 mm thick.
Key Strengths:
- Horizontal loading: Optimized and secure system for handling ID1 cards
- Flexible thickness: Safely manages cards from 0.3 to 1.5 mm
- Auto-calibration: Automatically sets up programs for complex materials
- Outstanding speed: Dual scanning counts 500 cards in just 2.6 seconds
The counting revolution: fast, universal, contactless
The Mictom CountStar M counter represents a generational leap in professional counting instruments. Built with a robust design to guarantee releiable long-term performance in harsh production environments, this machine completely eliminates the time-consuming processes of manually loading and unloading cards. Thanks to a high-resolution USB 3.0 camera (or linear scan camera) and state-of-the-art digital image analysis software, the CountStar M analyzes and counts cards while they are still inside thei original box, automatically compensating for different box bottom heights.
The system is managed by a fanless industrial PC (WIN 10 IoT) and is equipped with a large 22-inch touch screen. Its universal nature allows it to read not only all plastic omposites (ABS, PVC, PC, PET) but also cardboard, as well as complex cards such as transparent, translucent or embossed types.
Features and Benefits
- Maximum efficiency: One second per box of 500 cards with the ability to count through shrink wrap (if tightly fitted)
- Customizable interface: Consistent GUI with individually adjustable button sizes and texts, supported by a new integrated tool for comfortably creating or editing counting programs
- Industry 4.0 support: Option to integrate software upgrade packages to support full process automation
- Low power consumption: Only 130 W of power consumption, combined with extremely fast and pratical box loading and unloading
Data sheet
- Dimensions
- 690 x 540 x 520 mm (L x D x H)
- Weight
- 48 Kg
- Card materials
- ABS
Cardboard
Other plastic composites
PC
PET
PVC - Card thickness
- ~ 0.40 mm - 5 mm (~ 16 mil. – 200 mil.)
- Card type
- Colored plastic
Embossed plastic
Most types of transparent materials
Neutral-colored plastic
Translucent plastic - Card size
- ID1 (53.98 x 85.6 mm), landscape orientation
- Counting process
- Contactless: The Most Advanced Digital Image Analysis Software
- Maximum paper box length
- 465 mm (18.3 inches)
- Display
- 22" touch screen
- Control unit / OS
- Fanless Industrial PC, Windows 10 IoT
- Interface / Ports
- 4 x USB 3.0 / 1 x Ethernet
- Camera type
- High-Resolution USB 3.0 Camera
Line-Scan Camera - Light source
- LED Bar
- Power consumption
- 130 W
