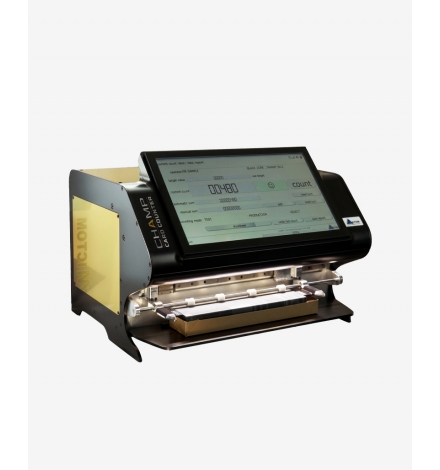

Ultra-high resolution universal desktop card counter
Mictom CHAMP is the undisputed number one contactless card counter, designed for both standard and highly complex cards. Using an ultra-high resolution camera, it counts ID1 cards (from 0.2 to 5 mm) directly in their box, even through shrink wrap. It is the ultimate Industry 4.0 solution for transparent, embossed or colored core cards.
Key Strengths:
- Contactless: Optical counting directly inside the original box
- Extended thickness: Safely handles ultra-thin cards from 0.20 mm to 5 mm
- Ultra-high resolution: Absolute precision even for the most difficult cards
- Industry 4.0: Integrated fanless industrial PC and 22" touch-screen
The n.1 solution for counting complex cards
The Mictom CHAMP counter represents the pinnacle of contactless optical counting technology. With a robust 65 kg chassis guaranteeing flawless and reliable long-term performance in harsh production environments, this machine eliminates the time-consuming and risky processes of manually loading and unloading cards. The true revolution lies in its optical assemply: an ultra-high resolution USB 3.0 camera combined with superior analysis software.
This advanced system not only compensates for different box bottom heights but ensures accurate counts for an unparalleled range of cards. The CHAMP effortlessly handles thicknesses starting from just 0.20 mm, reading perfectly through shrink wrap (if tightly fitted) and analyzing translucent, embossed, transparent or colored core cards.
Features and Benefits
- Simplified operation: Consistent and scalable Graphical User Interface (GUI) on a protected 22-inch touch screen with individually adjustable button sizes and texts
- Integrated development tool: New state-of-the-art software to comfortably create new counting programs or edit existing ones directly on the machine
- Automation ready: Prepared with optional software upgrade packages to support Industry 4.0 and business process automation
- Energy efficiency: Despite offering top-level industrial performance, the device maintains very low power consumption (only 130 W)
Data sheet
- Dimensions
- 690 x 540 x 520 mm (L x D x H)
- Weight
- 48 Kg
- Card materials
- ABS
Cardboard
Other plastic composites
PC
PET
PVC - Card thickness
- ~ 0.20 mm - 5 mm (~ 8 mil. – 200 mil.)
- Card type
- Colored plastic
Embossed plastic
Neutral-colored plastic
Translucent plastic
Transparent cards - Card size
- ID1 (53.98 x 85.6 mm), landscape orientation
- Counting process
- Contactless: The Most Advanced Digital Image Analysis Software
- Maximum paper box length
- 465 mm (18.3 inches)
- Display
- 22" touch screen
- Control unit / OS
- Fanless Industrial PC, Windows 10 IoT
- Interface / Ports
- 4 x USB 3.0 / 1 x Ethernet
- Camera type
- High-Resolution USB 3.0 Camera
- Light source
- LED bar
- Power consumption
- 130 W
